- Place of Origin:Fujian, China
- Brand Name:KEYPOWER
- Model Number:KP-P7
- Rated Power:10kw-2000KW
- Output Type:AC Three Phase
- Rated Voltage:220V/380V/127V/440/240/415V
- Rated Current:13A-6550A
- Speed:1500/1800
- Frequency:50hz/60hz
- Generator Alternator Brand:Leroy Somer alternator model
- Generator Controller brand:Deepsea, ComAp, Datakom, smartgen, Harsen
- Generator Battery brand:German Varta or Sail
- Generator Fuel tank capacity:8 hours or 24 hours optional
- Generator MCCB:Delixi
- Generator ATS:Socomec, Siemens, Suyang optional
- Generator Manuel and stickers:English, Spanish, Arabic version available
- Generator Control panel:Manuel operation or AMF with digital controller
Soundproof Diese Generator 7 kva Generator with CE and ISO
GENSET MODEL | Genset Specification | Engine Specification | Leroy Somer alternator model | ||||||||
KVA | Cons 100% L/H | dB(A) @7m | Tank (L) | Perkins engine model | Cyl. | Gov. | Asp. | ||||
ESP | PRP | ||||||||||
KP-P7P-1 | 7.5 | 6.8 | 2.5 | 64 | 55 | 403A-11G1 | 3 | M | NA | LSA40VS1 | |
KP-P8S-1 | 7.5 | 6.8 | 2.5 | 64 | 55 | 403A-11G1 | 3 | M | NA | LSA40VS1 | |
Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified
Diesel Generator specs:
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency:50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed:1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away
Alternator:
Brands: Stamford, Leroy Somer, Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency:50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed:1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class:IP23

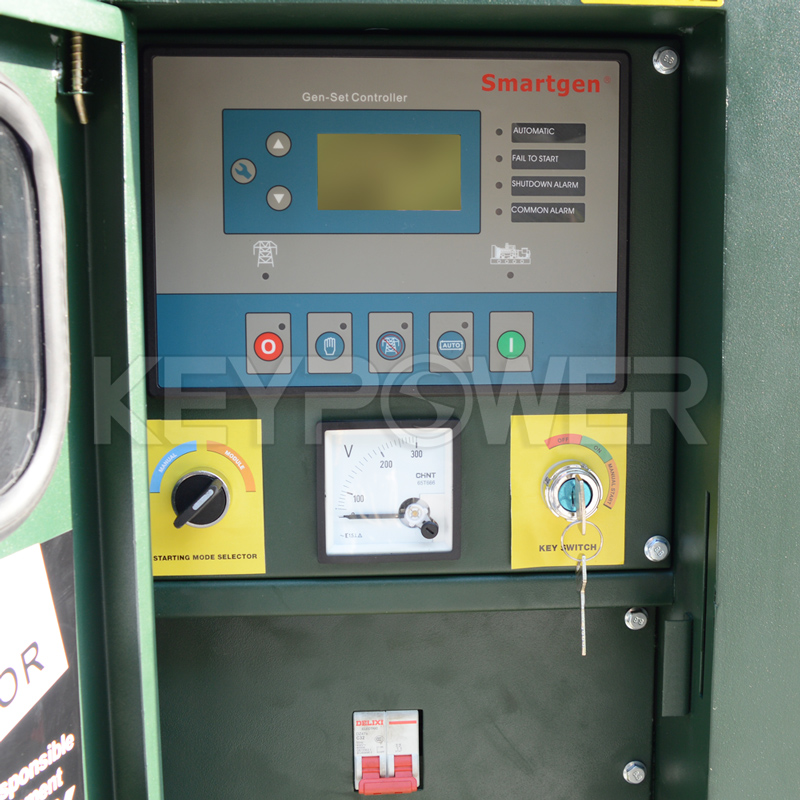

Control panel: Deepsea, ComAp, Keypower
The panel is provided with:
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
MCB of suitable rating with overload and short-circuit protection
Optional with AMF control panel or with ATS (automatic transfer switch)
 |
|

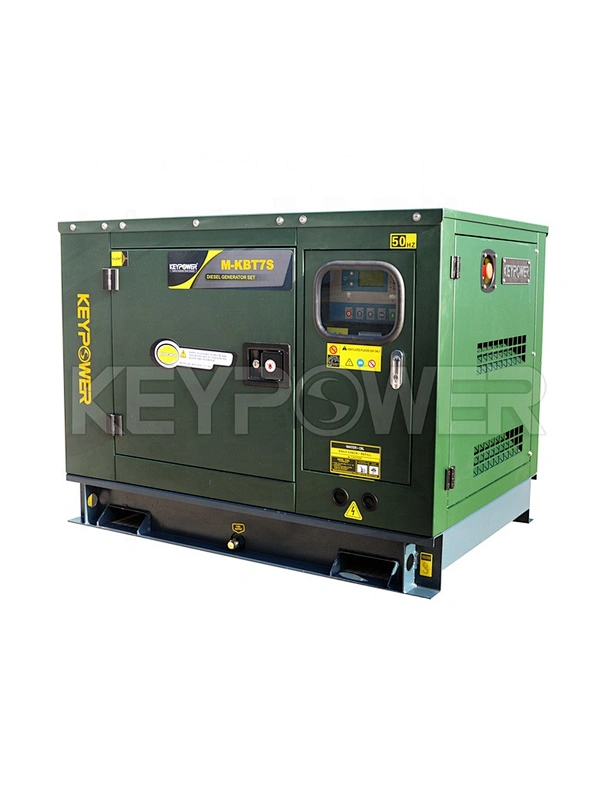

7 kva Soundproof Diesel Generator with Leroy Somer
