- Place of Origin:Fujian, China
- Brand Name:keypower
- Model Number:KP-20
- Rated Power:10kw-2000KW
- Output Type:AC Three Phase
- Rated Voltage:220V/380V/127V/440/240/415V
- Rated Current:13A-6550A, 13A-6550A
- Speed:1500/1800
- Frequency:50hz/60hz, 50HZ/60HZ
- Engine Brand:FAWDE Xichai Diesel Engine
- Engine Model:4DW91-29D
- Size:1400*680*1000
- Weight:440 kg
- Rrime Power:20kva / 16kw
- Rated voltage:220V/380V/127V/440V/240/415V
- Displacement:2.54 L
- MOQ:6 SET

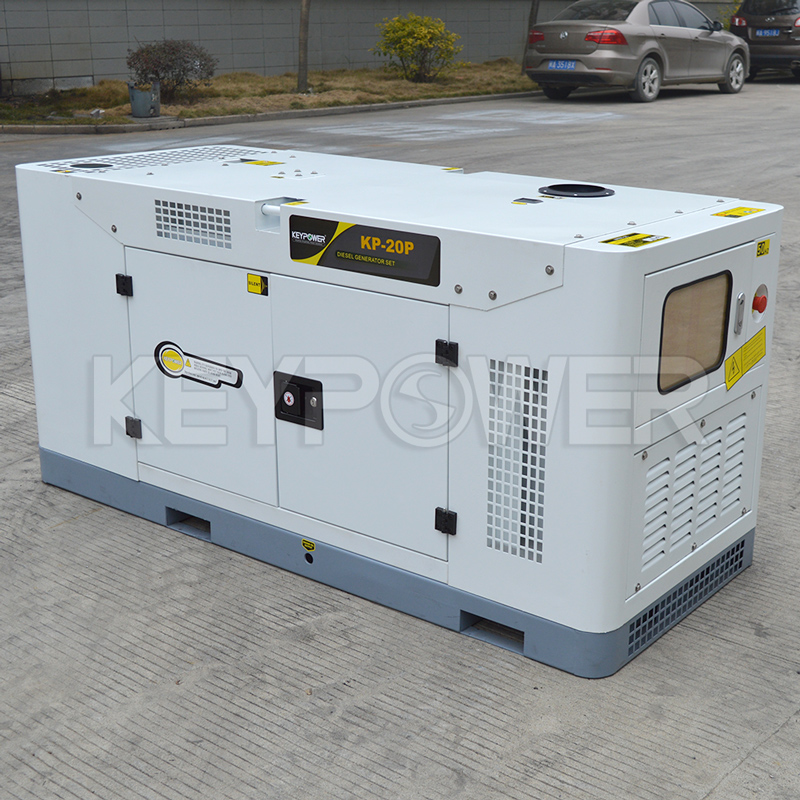

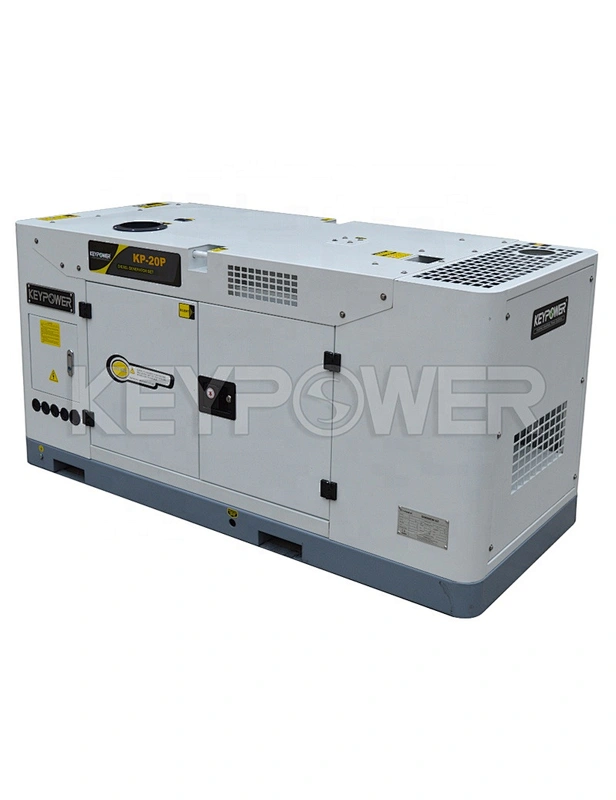

KEYPOWER Diesel Generator 20 kVA Soundproof Generator Powered by 4DW91
KEYPOWER 4 units of 2500 kVA UK Cummins generators for Veolia
 |
|
Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified
Generator specs:
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away
Alternator:

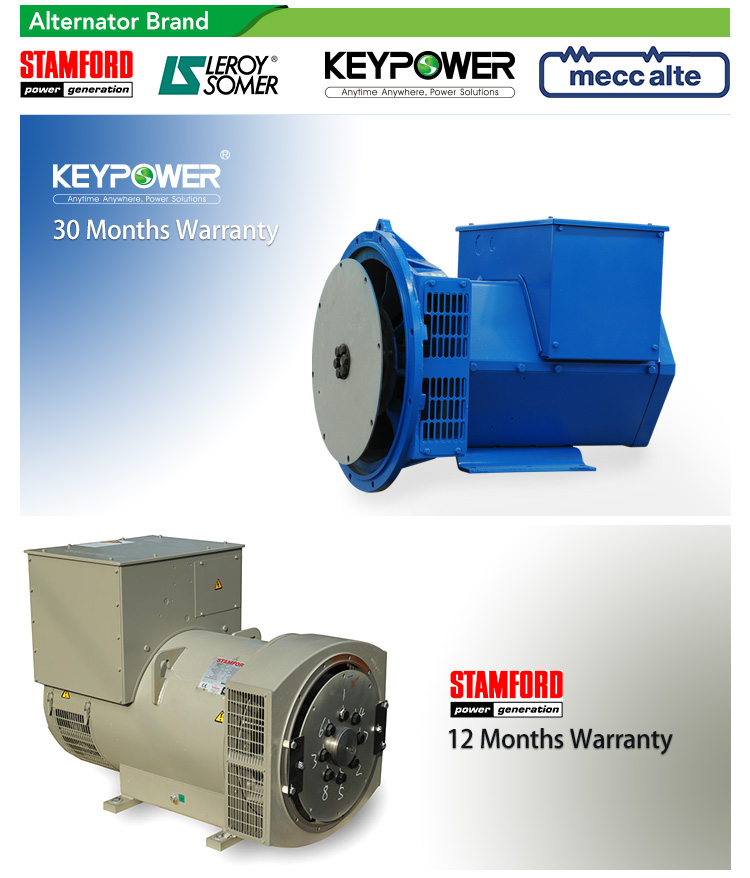

Brands: Stamford, Leroy Somer, Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency:50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed:1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class:IP23

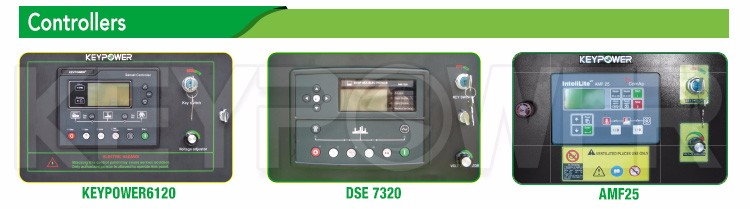

Control panel: Deepsea, ComAp, Keypower
| Genset Technical Data | |||
| Genset Model | KP-20P | Brand | FAWDE Xichai |
Prime Power (kW/kVA) | 16/20 | Standby Power (kW/kVA) | 18/22.5 |
| Rate Voltage | 127/220/380/240/415/440 | Power Factor | 0.8 |
| Engine Model | 4DW91-29D | Alternator Model | UCI274E |

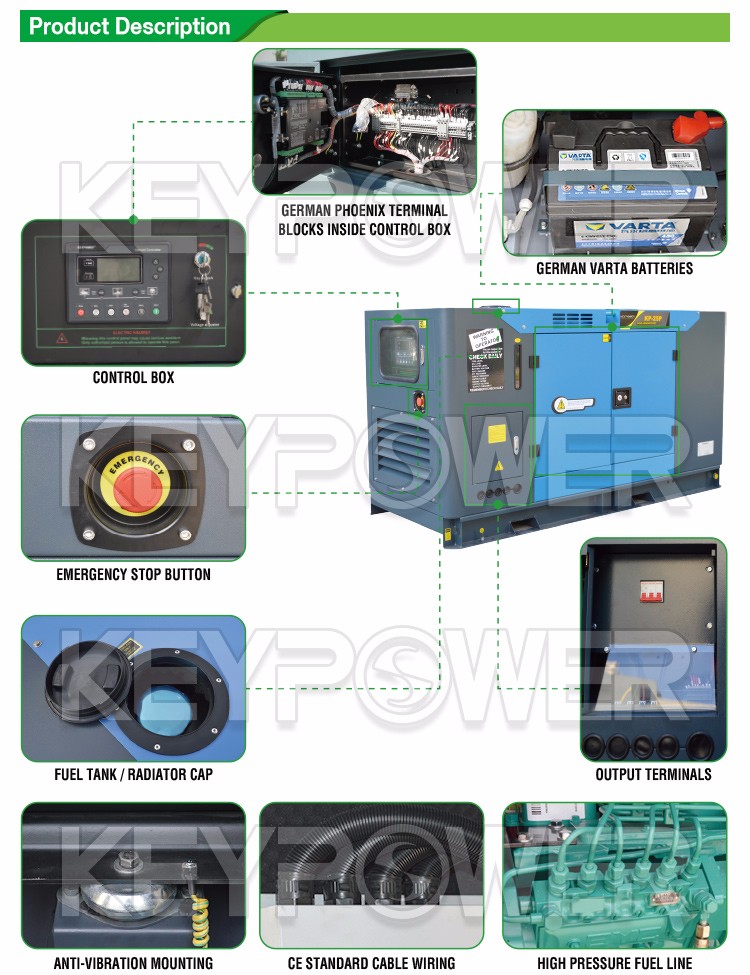

| Control System | KEYPOWER6120 | Battery Brand | German Varta |
| ATS | ABB, Socomec, Simens, Suyang | Fuel Tank Capacity(L) | 2.54 |
| Dimension(L*W*H) | 1400*680*1000mm | Weight | 440 kg |
| Engine Parameter (4DW91-29D) | |||
| Number of cylinders | 4 | ||
| Cylinder arrangement | Vertical in line | ||
| Cycle | Four stroke | ||
| Aspiration | Naturely Aspiration | ||
| Bore x stroke (mm x mm) | 100*127 | ||
| Compression ratio | 17.3:1 | ||
| Speed governor | Electronic | ||
| Cooling system | Water cooled, 50° radiator | ||
| Fuel consumption (L/H) | 30 | ||

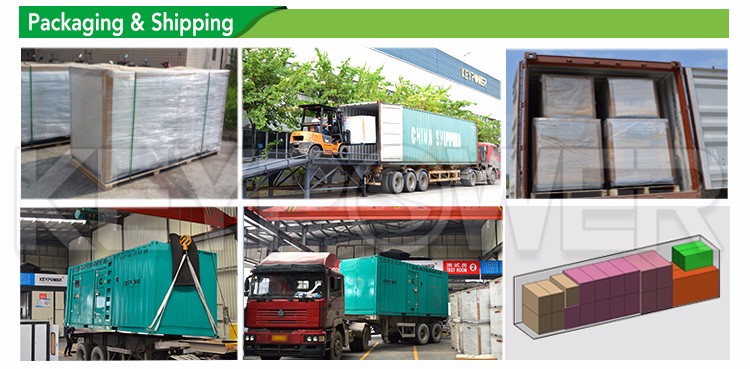

Packing:
PE film with hard paper corner protector
Applications:

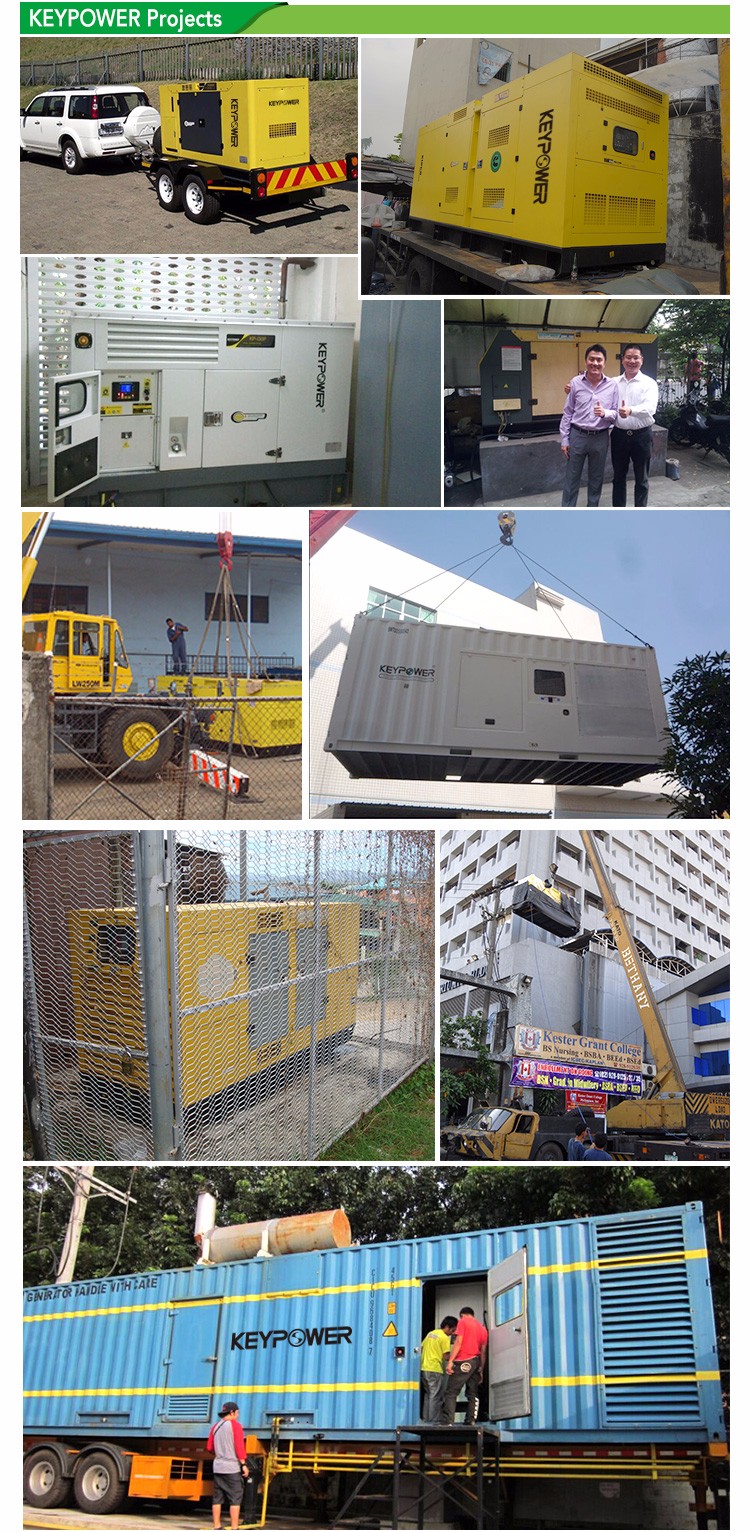

With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.
1.Q: What is your MOQ of this item?
A: 20FT contanier of mixed models
2.Q: What is your payment terms?
A: Price is based on FCL sale: T/T, L/C, D/P, O/A
3.Q: What is the lead time?
A: 25-45 workings days
4.Q: Where is your port of loading?
A: Fuzhou, China.
5.Q: Can I use my own brand name?
A: Yes, OEM and ODM are both supported.
6.Q: Your annual production capactiy?
Water-Cooled Genset | 3,000 units |
Air-Cooled Genset | 100,000 units |

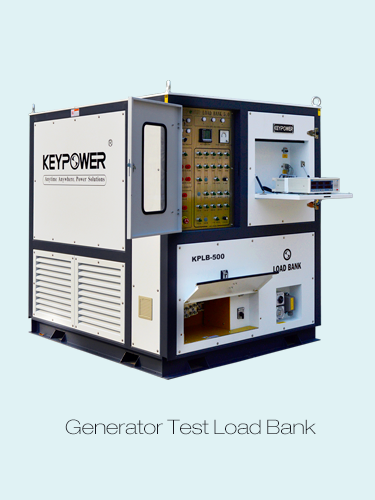

Load Bank | 500 units |
7.Q: Available colors?
A: White, Blue, Red, Green, Yellow, Gray
8.Q: Which markets have you exported before?
A: Southeast Asia, the Middle East, Africa, Europe, North and South America, Oceania.
9.Q: Any certifications for your gensets?
A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.
10.Q: How is your packaging?
A: Stretching film as standard, plywood crate is optional
11.Q: The valid period of the offer?
A: 30 DAYS
