- Warranty:Other
- Certification:ce
- Place of Origin:Fujian, China
- Brand Name:KEYPOWER
- Model Number:KP-YM18P
- Rated Voltage:220V/380V/127V/440/240/415V, 400/230V
- Rated Current:13A-6550A
- Speed:1500 rpm/1800 rpm
- Frequency:50hz/60hz
- Rated Power:15kW/18kVA
- Manuel and stickers:English, Spanish, Arabic version available
- Noise level db(A)/7m:78db (A)
- Type:silent type
- Options:ATS
- Base Fuel Tank:8-10 Hours
- Certificate:CE, ISO Certificates

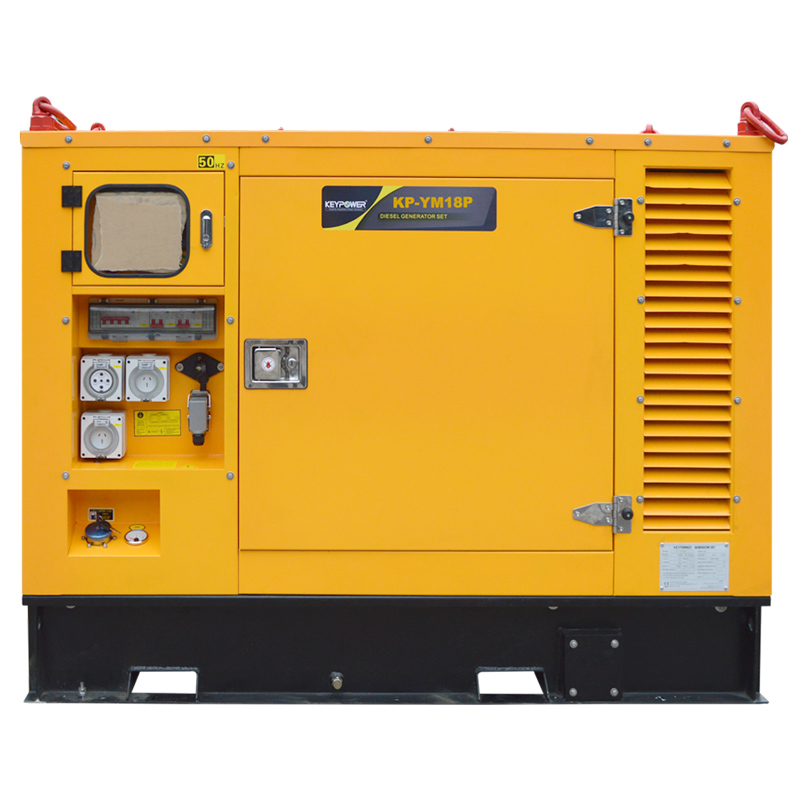

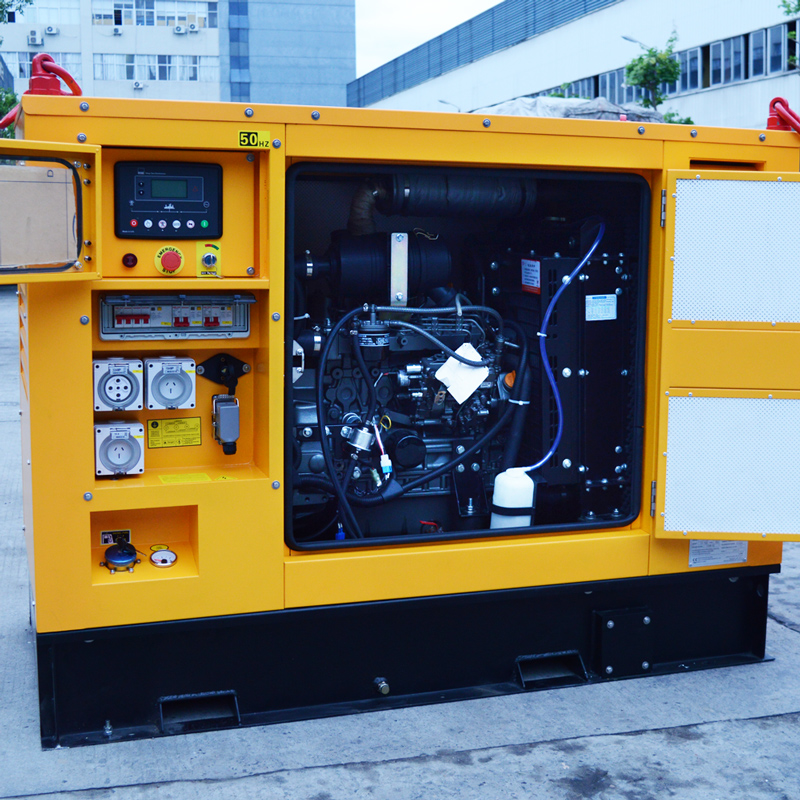

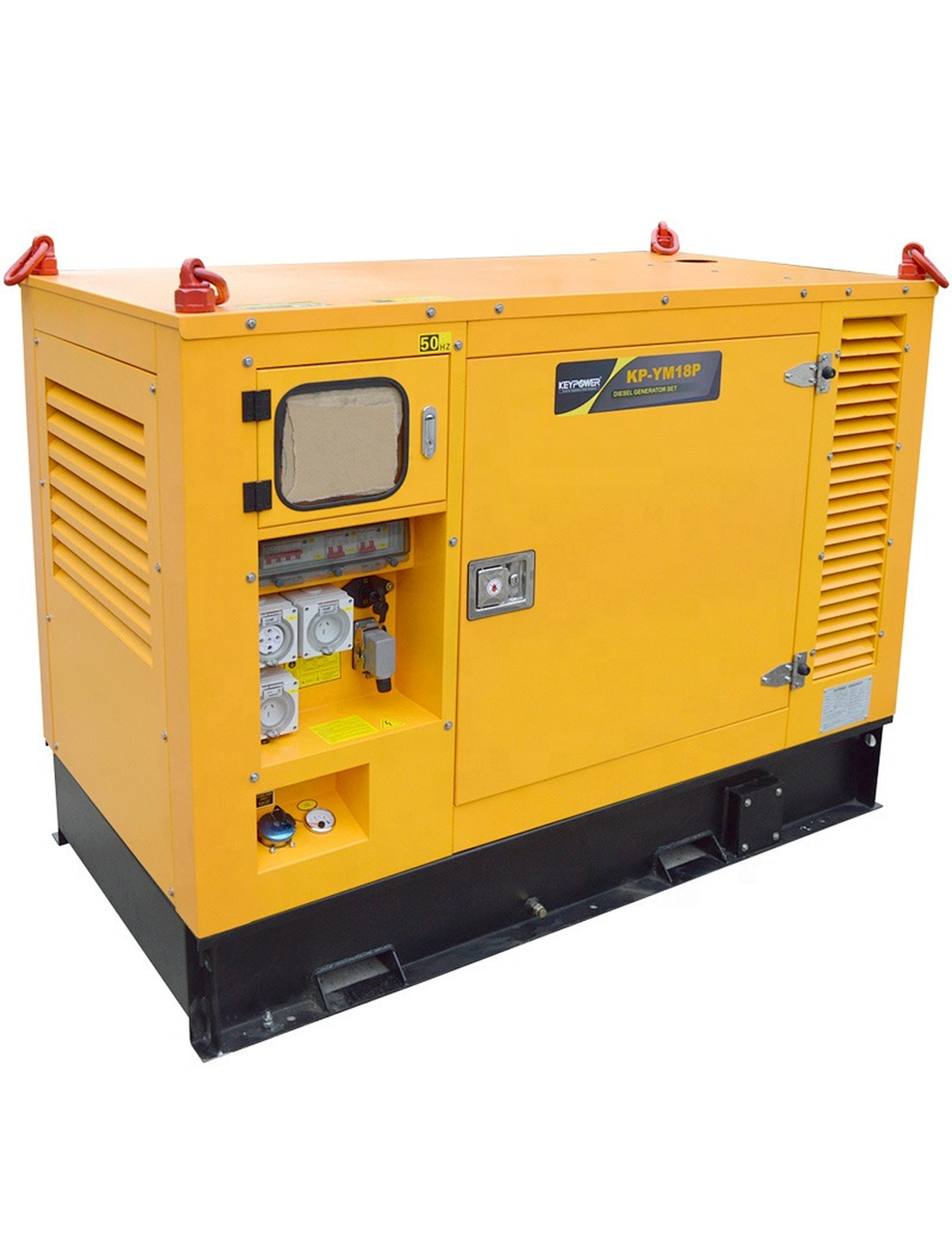

AC 3 Phase 18kVA/15 kw Diesel Generator Price in China
Generation Model | KP-YM18P |
Engine Model | 3TNV88 |
Alternator | Stamford, KEYPOWER |
Generation Power (Kw) | 15 |
Generation Capacity(Kva) | 18 |
Voltage (V) | 220/380 |
Rated Current (A) | 144 |
Frequency (Hz) | 50 |
Protection Grade | IP23 |
Insulation Class | H |
Rated Speed (Rpm) | 1500 |
Power Factor | 0.8 |
Type | AC Three Phase |
Cooling Method | Water-cooled |
Starting Method | Electric starting |
Orientation of cylinder | L |
Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified
Diesel Generator specs:
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency:50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed:1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away
Alternator:
Brands: Stamford, Leroy Somer, Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency:50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed:1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class:IP23
Control panel: Deepsea, ComAp, Keypower
The panel is provided with:
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
MCB of suitable rating with overload and short-circuit protection
Optional with AMF control panel or with ATS (automatic transfer switch)
 |
|
