- Place of Origin:China
- Brand Name:KEYPOWER
- Model Number:KP-C145S
- Rated Voltage:L-N 110 277V, L-L 220 to 480V
- Rated Current:40-79A
- Speed:1500/1800
- Frequency:50Hz/60Hz
- Type:slient Type
- Name:135KVA diesel generators
- Controller brand:Deepsea,, Datakom, smartgen, Harsen,Keypower
- Battery brand:German Varta or Sail
- Fuel tank capacity:8 hours or 24 hours optional
- MCCB:Schneider, or Delixi optional
- ATS:Schneider, Socomec, Siemens, Suyang optional
- Manuel and stickers:English, Spanish, Arabic version available
- Cooling method:closed water-cooled or air-cooled
- Noise level:56 to 75dB@7 meters away

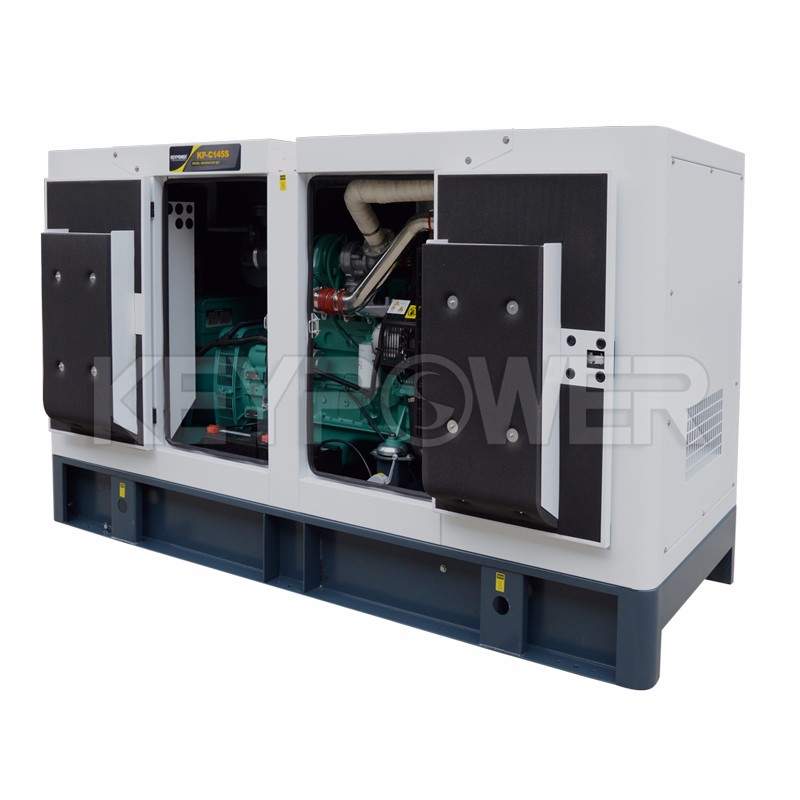

AC 135KVA diesel gnerators, electric generators, power generator price list with brand engine
| Genset | KP-C145s |
| Voltage | 400/230V |
| Engine | 6BTAA5.9-G2 |
| Prime Power/Standby Power | 108kw/116KW |
| Alternator | Leroy somer,Stamford,KEYPOWER |
| Controller | Deepsea,KEYPOWER |
| Circuit Breaker | DELIX |
| Type | Open |
| Fuel Tank | Base Tank,External Daily Fuel Tank |
| Optional supporting products | Moveable/Trailer Type Diesel Generator /Synchronization System Automatic Transfer Switch /Dummy Load Day Tank |
KEYPOWER Generator Supply Scope
| 1. Engine: | Brand-new engine. | |||||||||||

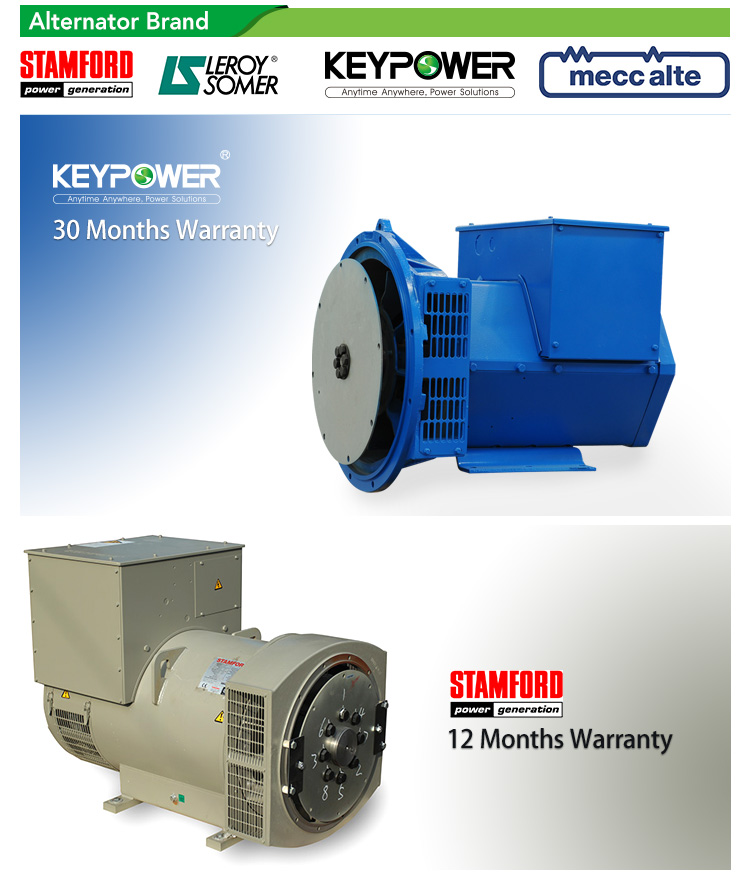

| 2. Alternator: | Brand new brushless alternator with AVR, single bearing, IP23, H insulation class. | |||||||||||
| 3. Base Frame: | Heavy duty steel channel base frame. | |||||||||||
| 4. Radiator: | With safety guard. | |||||||||||
| 5. Vibration Damper | Vibration damper between Engine/Alternator and base frame | |||||||||||
| 6. Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option | |||||||||||

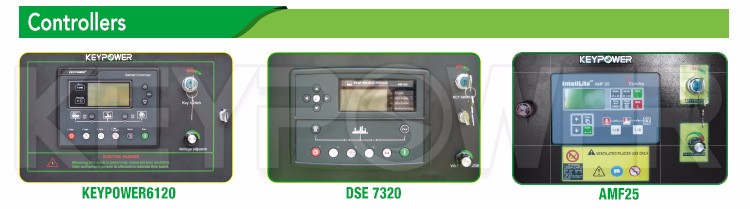

| 7. Controller: | DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10, MRS16, AMF20, AMF25 ,KEYPOWER 6120 or option. | |||||||||||
| 8. Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. | |||||||||||
| 9. Battery: | Varta Brand,high capacity sealed maintenance free battery c/w battery cables. | |||||||||||
| 10. Fuel Tank: | 8 hours base fuel tank | |||||||||||
| 11. Tool Kits & Manuals: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. | |||||||||||
| Genset Model | Prime power/ Standby power | Engine model | Fuel consumption | Cylinder | Displacement (L) | Genset Dimension (mm) | Weight (kg) | |

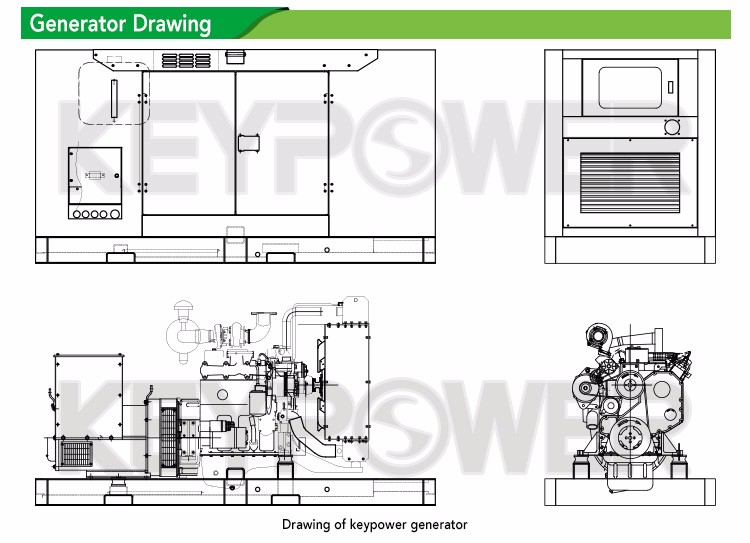

| KP-C145S | 108/135 | 116/145 | 6BTAA5.9-G2 | 30 | 6L | 5.9 | 2200*1030*1500 | 1100kgs |
Applications:

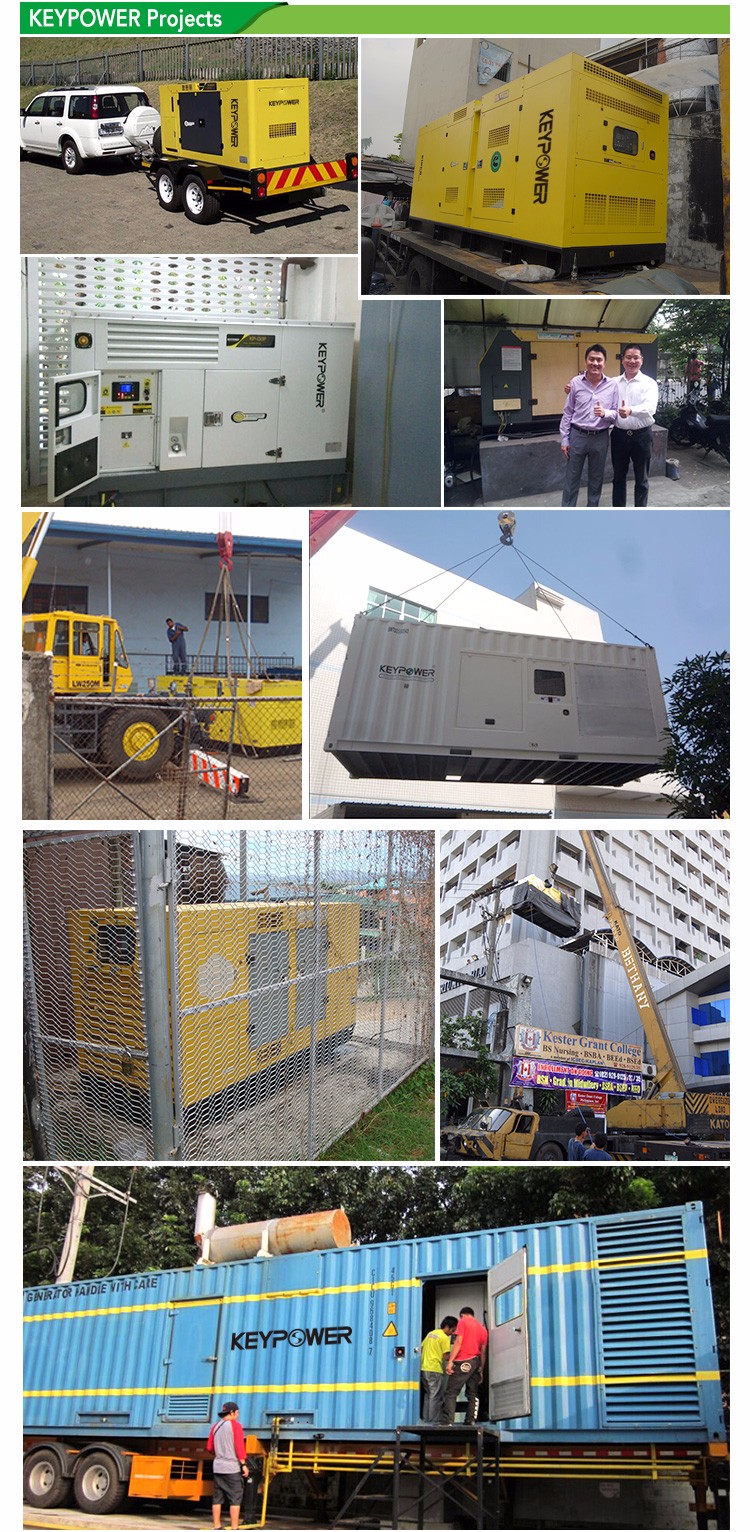

With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.
FAQ >>
1.Q: What is your MOQ of this item?
A: 20FT contanier of mixed models
2.Q: What is your payment terms?
A: Price is based on FCL sale: T/T, L/C, D/P, O/A
3.Q: What is the lead time?
A: 25-45 workings days
4.Q: Where is your port of loading?
A: Fuzhou, China.
5.Q: Can I use my own brand name?
A: Yes, OEM and ODM are both supported.
6.Q: Your annual production capactiy?
| Water-Cooled Genset | 3,000 units |
| Air-Cooled Genset | 100,000 units |
| Load Bank | 500 units |
7.Q: Available colors?
A: White, Blue, Red, Green, Yellow, Gray
8.Q: Which markets have you exported before?
A: Southeast Asia, the Middle East, Africa, Europe, North and South America, Oceania.
9.Q: Any certifications for your gensets?
A: I
