- Place of Origin:Fujian, China
- Brand Name:KEYPOWER

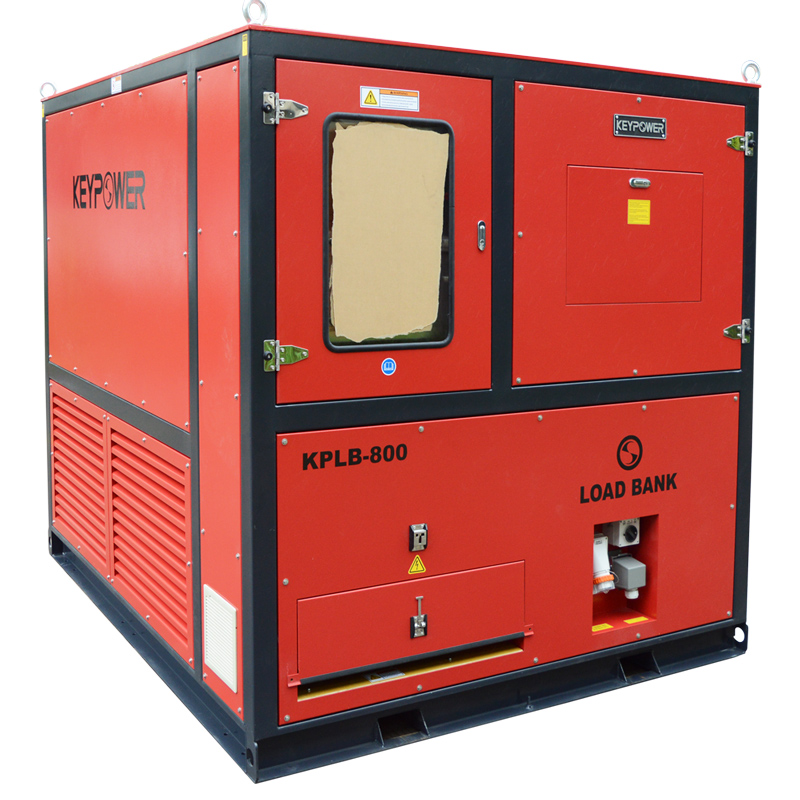

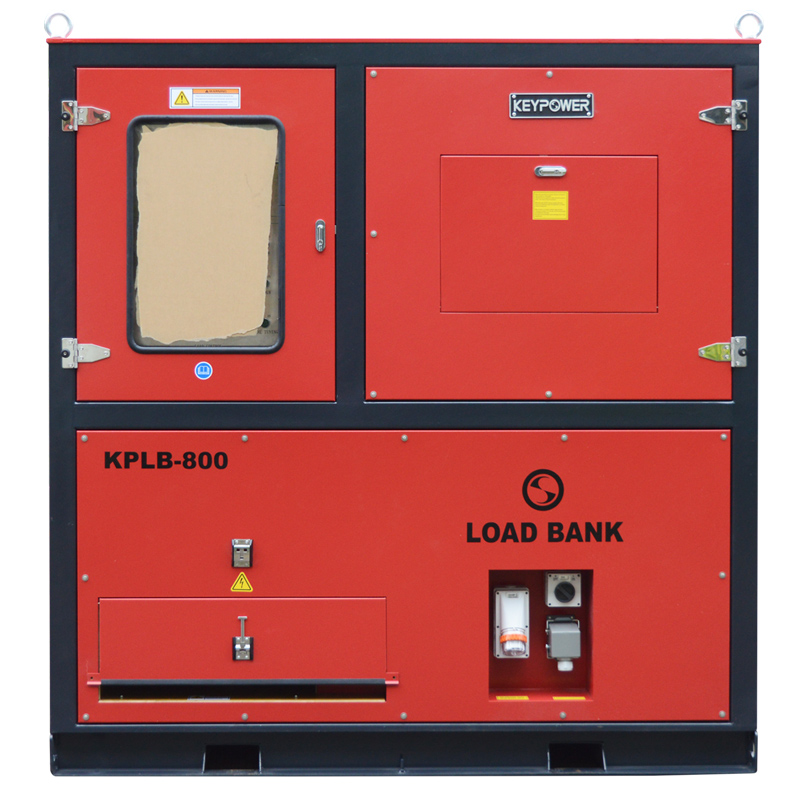

- Model Number:KPLB-800
- Power:Electronic
- Usage:Auto Testing Machine
- color:green/white/blue/red
- MOQ:1 SET
- brank:KEYPOWER
- Model:LOAD BANK 1000KW
- Payment:FOB/TT
- Supply capacity:100SET/ month
- Power Range:200KW---2000KW
- Pack:Wooden packaging,Carton packaging
- Delivery time:30 days
- Port:FUZHOU

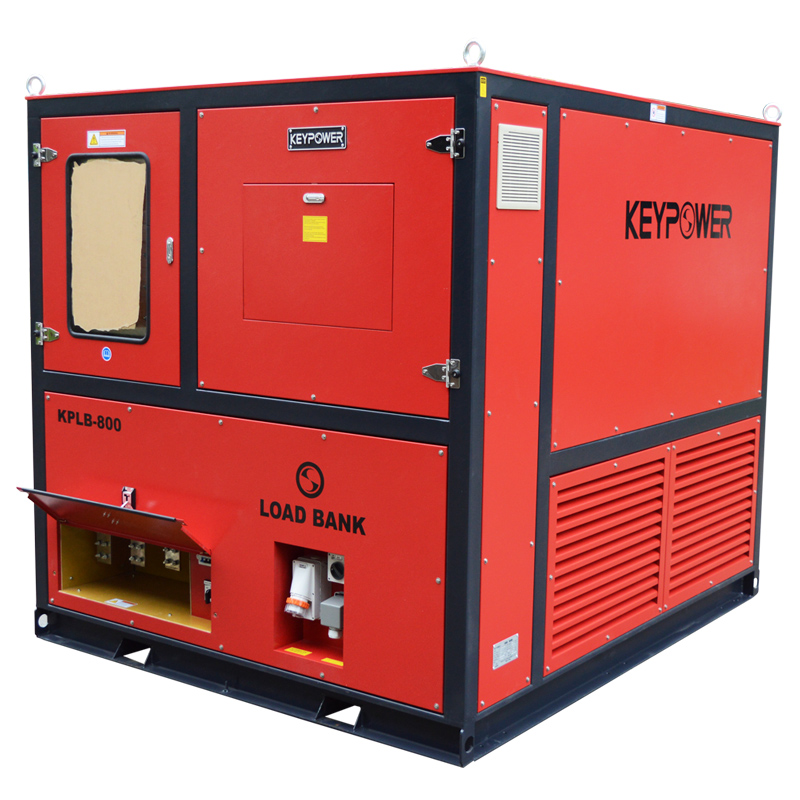

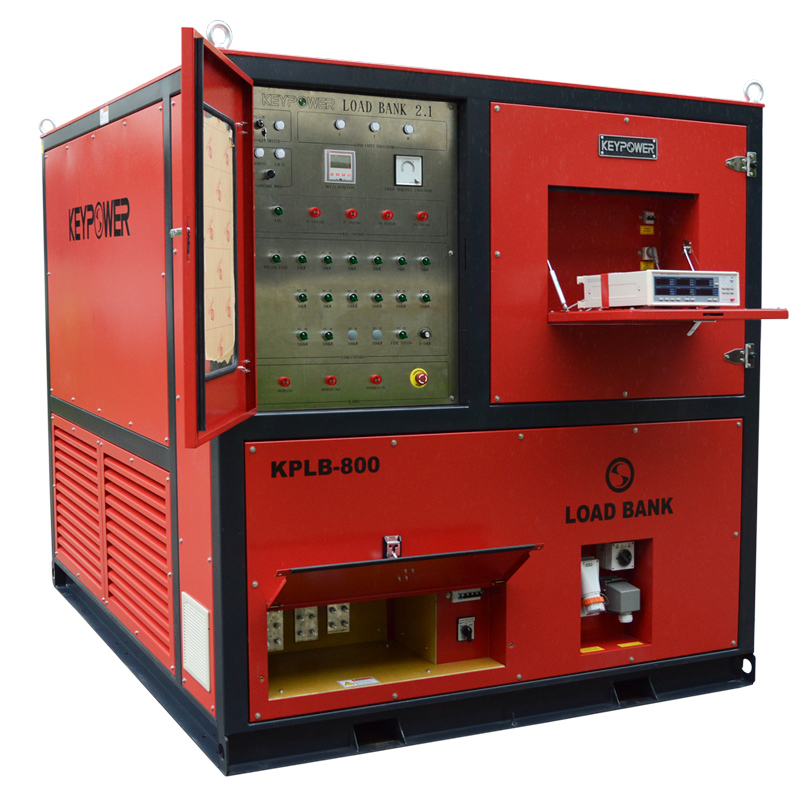

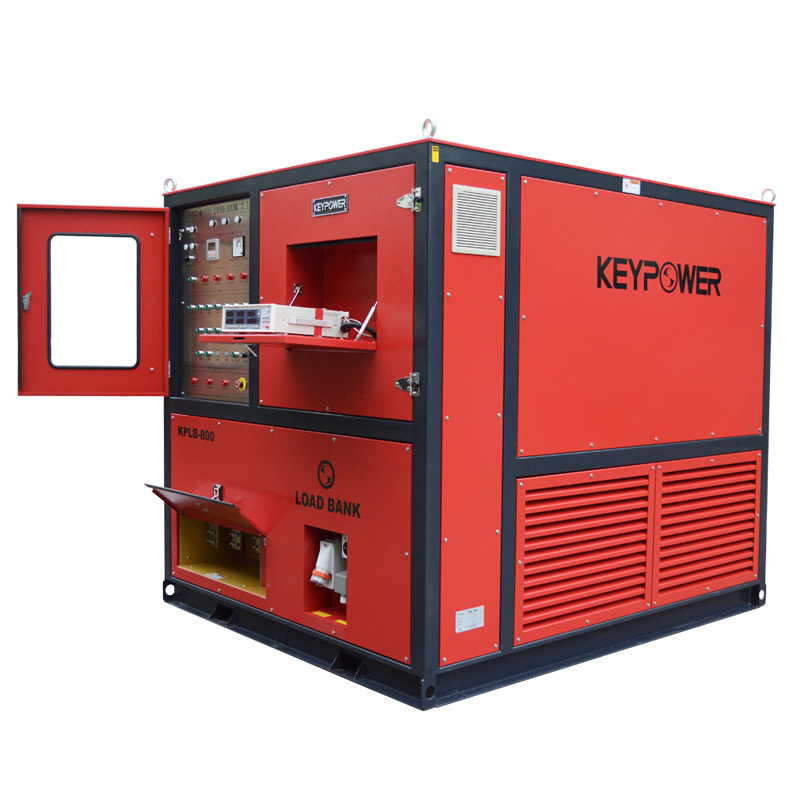

100-2000 kw load bank for generator load test:
1. Premium components
2. Durable and reliable
3. Easy to transport
Load bank is a simulating load test equipment used for generators, UPS, battery banks etc power systems load test.
2. Rated testing voltage: AC 3P4W, 110-480V 50/60 Hz.
3. Cooling mode: Forced air-cooled, fans mounted on the side of the load bank blow horizontally. Testing power or external utility power supply for fans.
4. Working mode: Load step control
Total testing capacity ranges from 0kw to the max consisting of 10kw, 20kw, 50kw, 100kw load setting switches plus a 0-10kw fine-tuning knob. From 0kw to the max, any load combination is achievable. Load step resolution is 10kw.
5.Load bank features world-famous components to ensure reliable performance and longer service life including:
SCHNEIDERcontactors.
Siemens switches, knobs and indicators.
ABB Circuit breakers.
OMRON intermediate relays.
PHOENIX terminal blocks.
6. Parameter measuring accuracy grade:0.5.
7. Load control accuracy: ± 5%.
8. Load bank protections: Over heating protection, cooling fans failure protection and over load protection with alarm.
9. Control mode: Two control modes available:
A) Local manual control;
B) Optional: Manual control via a remote control panel (max control distance is 20m).

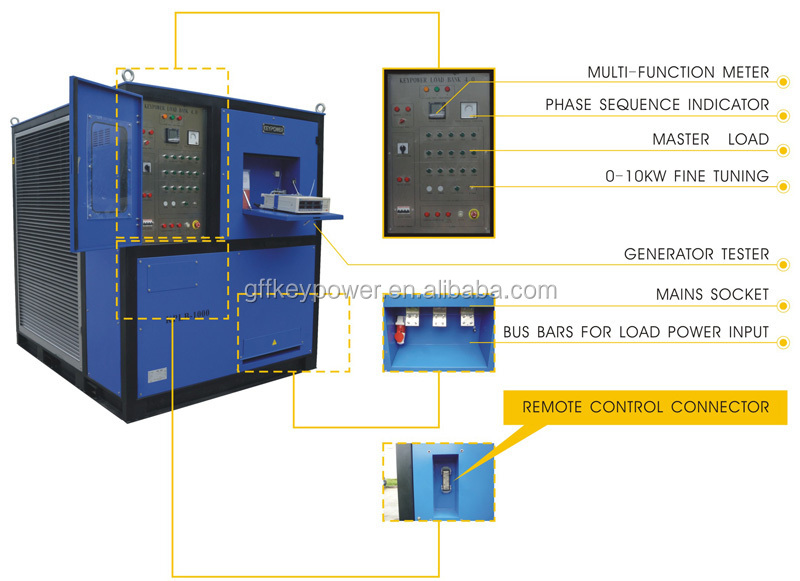

10. Parameter display and measurement:
Control panel contains a SOCOMEC Multifunction Electricity Meter displaying voltage, current, load power, reactive power, apparent power, power factor, frequency etc.
(Optional: A professional generator tester displays and measures all sorts of steady, dynamic parameters as well as harmonic wave, can be connected to a PC for data recording and test report printing)."
11.Operating environment:
Altitude: ≤ 1000m above sea level. Ambient temp: -10~+40 degree centigrade
Relative humidity: ≤ 80% ventilated environment without explosive or corrosive dust. Not allowed to use in rainy outdoor environment.
Testing capacity:0 - 400 kw
Type of load:Resistive or Reactive, PF = 1.0 or 0.8
Duty:Continuous
Cooling system:Industrial grade axial fan
Phase:Available at both single and three phase
Rated testing voltage:110-480 VAC
Rated Frequency:50/60 Hz
Dimensions (L*W*H)(mm):1600*1400*1700
Weight:1000 Kg

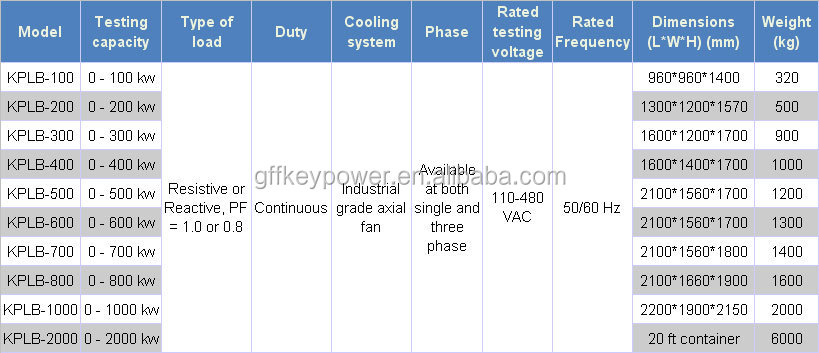

Models you can shoose:
| KEYPOWER generator tester specifications | ||||
| Measurement | Range | Accuracy | Resolution | Overload |
| Voltage (V) | 10.0~500.0V | ± (0.4% reading+0.1%range) | 0.1V | 600V |
| Current (A) | 0.030~5.000A | ± (0.4% reading+0.1%range) | 0.001A | 6A |
| power | According to volt range & current range | Power factor=1.0 | <200W 0.1W | |
| ± (0.4% reading+0.1% range) | ≥200W 1W | |||
| Power factor=0.5 | ≥2kW 10W | |||
| ± (0.8% reading+0.2% range) | ||||
| Power factor | 0.20~1.00 | ±0.02 | 0.001 | |
| Frequency | 45~65Hz | ±0.2Hz | 0.01Hz | |
| Running time | 99h59m | ±2min/hour | 1 minute | |
| Energy (kWh) | 99999kWh | Power factor=1.0 | 0.001kwh | |
| ± (0.4% reading+0.1% range) | ||||
| Power factor=0.5 | ||||
| ± (0.8% reading+0.2% range) | ||||
| Harmonic analysis (%) | 2-50 times and total harmonic | |||

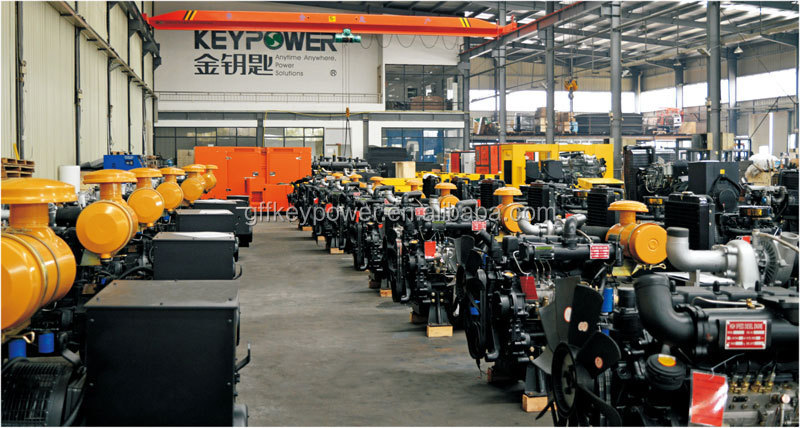

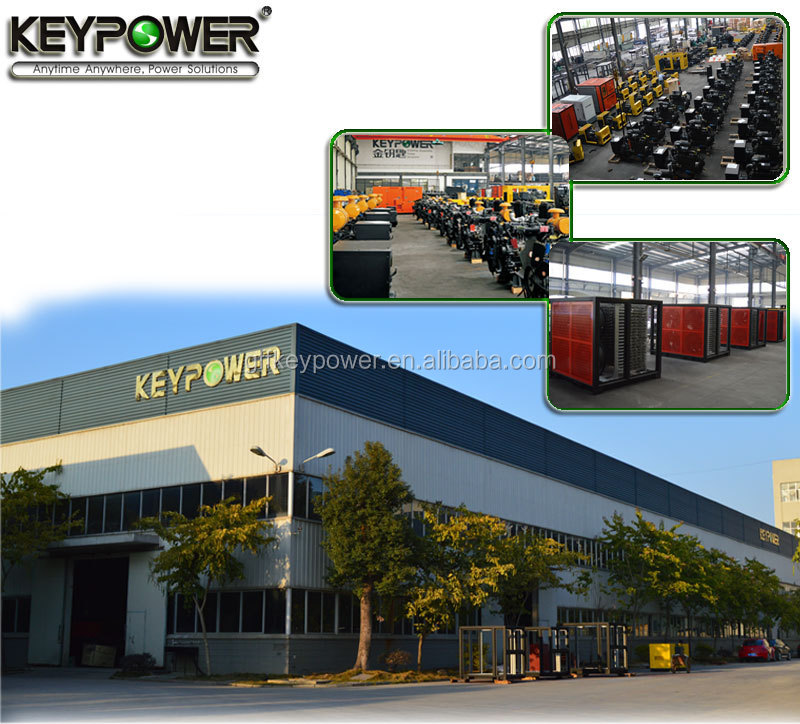

Fuzhou GFF KEYPOWER Equipment Co., Ltd is a dedicated diesel generator manufacturer with more than a decade’s experience in manufacturing and developing diesel generator sets. KEYPOWER is located in the coastal city of Fuzhou which lies to the west of Taiwan strait, with factory address at No. 1, Gaoqi Industrial Park, Nanyu town, Minhou county, Fuzhou, the park covers an area of 66,000 square meters including diesel generator assembling workshop of more than 8,000 square meters. With a professional team consisting of 150 qualified staff members as well as state-of-the-art processing equipments and innovative design philosophy, KEYPOWER manufactures and sells 3000-5000 units of high quality diesel generator sets every year.
